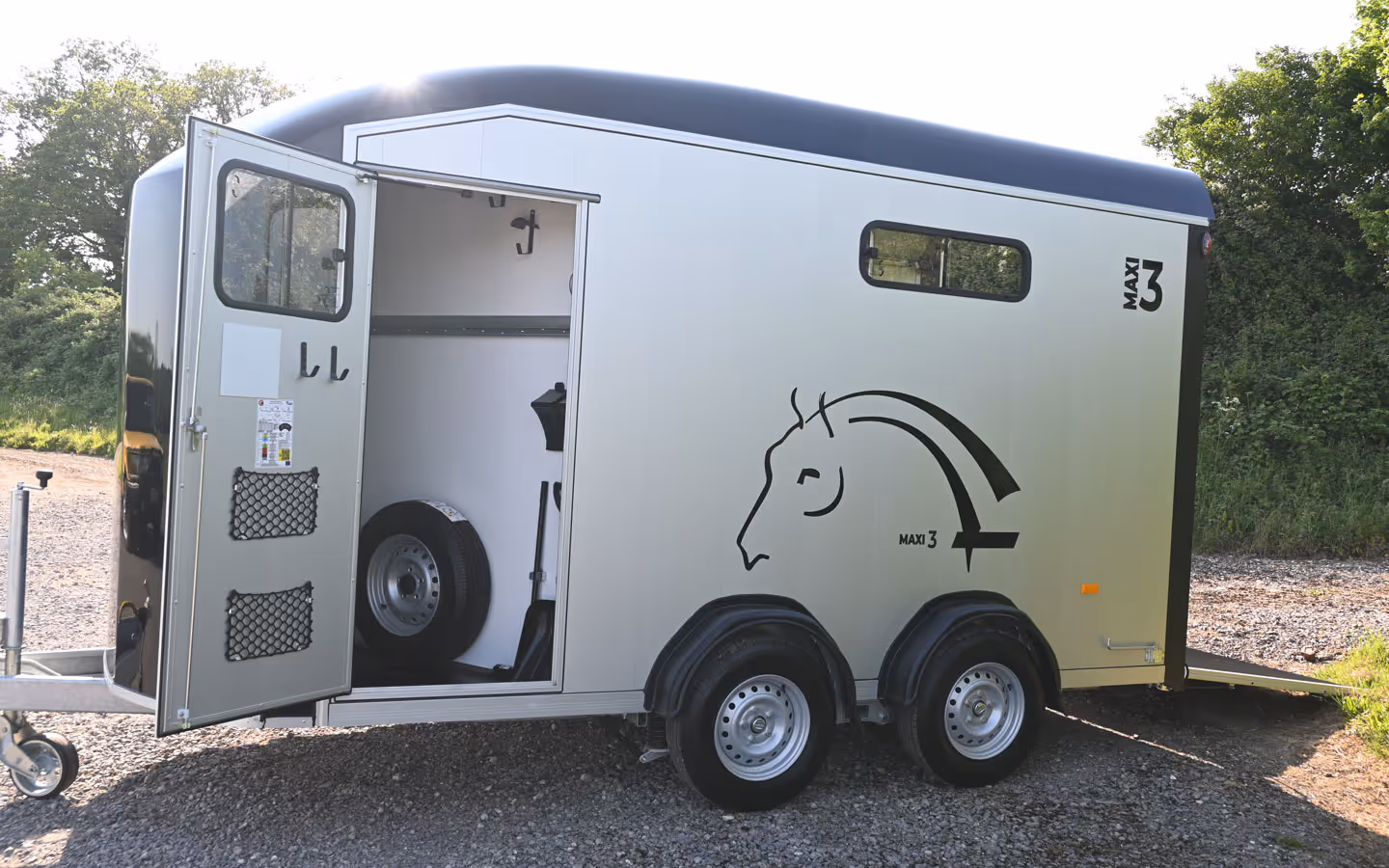

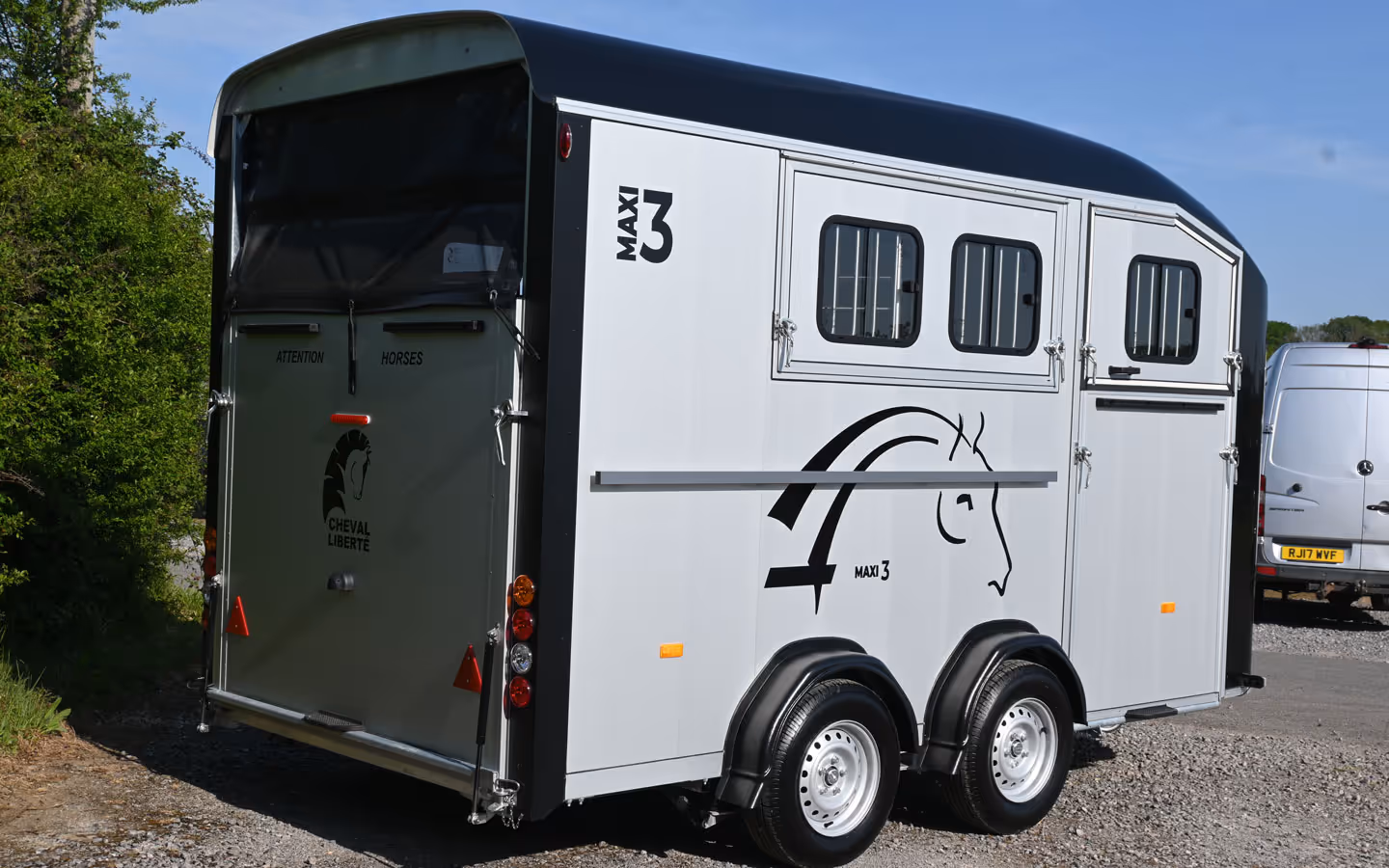

Maxi3 Three Horse Trailer
Designed for practicality and comfort, the Maxi3 features two telescopic adjustable partitions on sliding tracks, creating three spacious internal stalls for travelling horses.

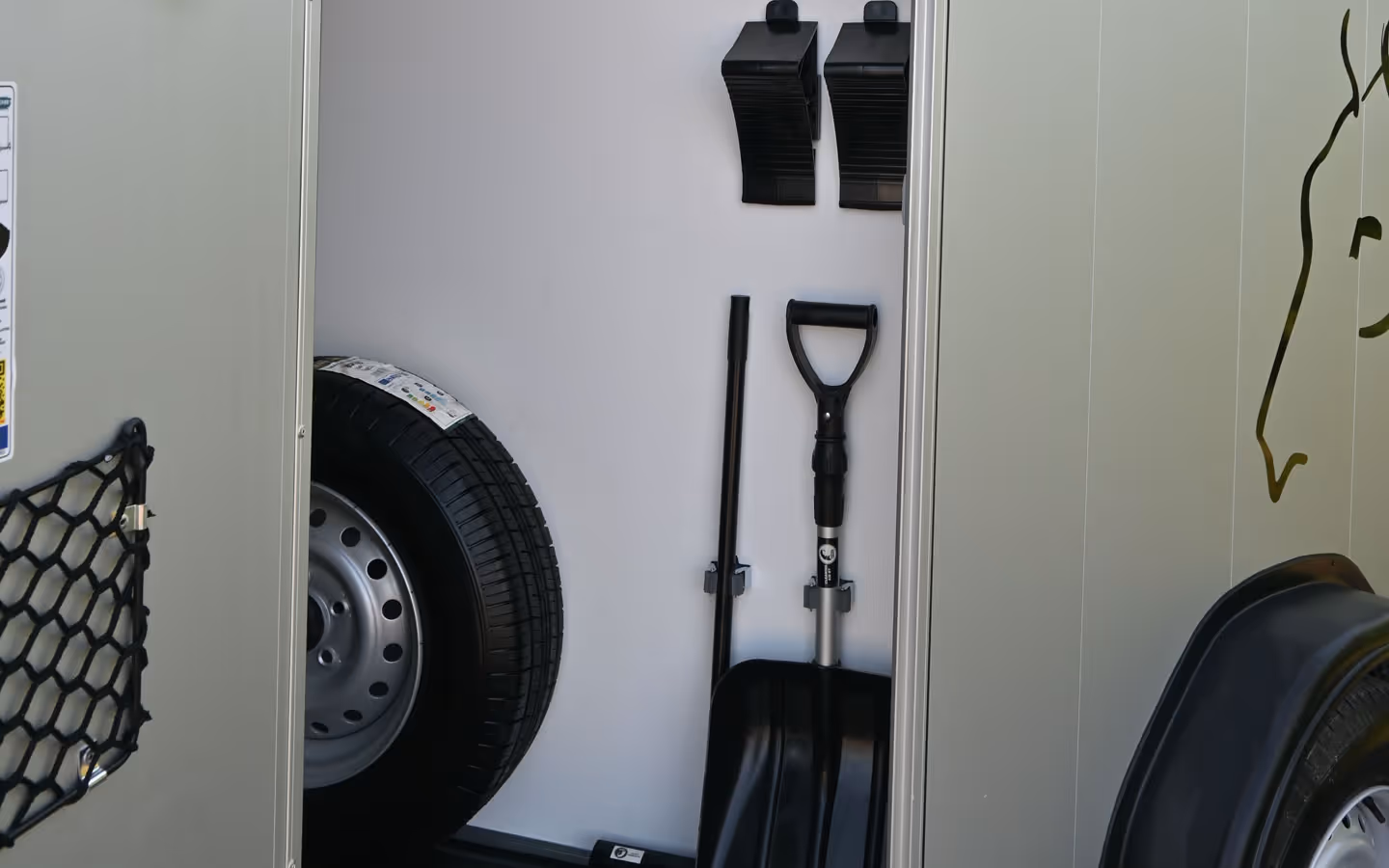

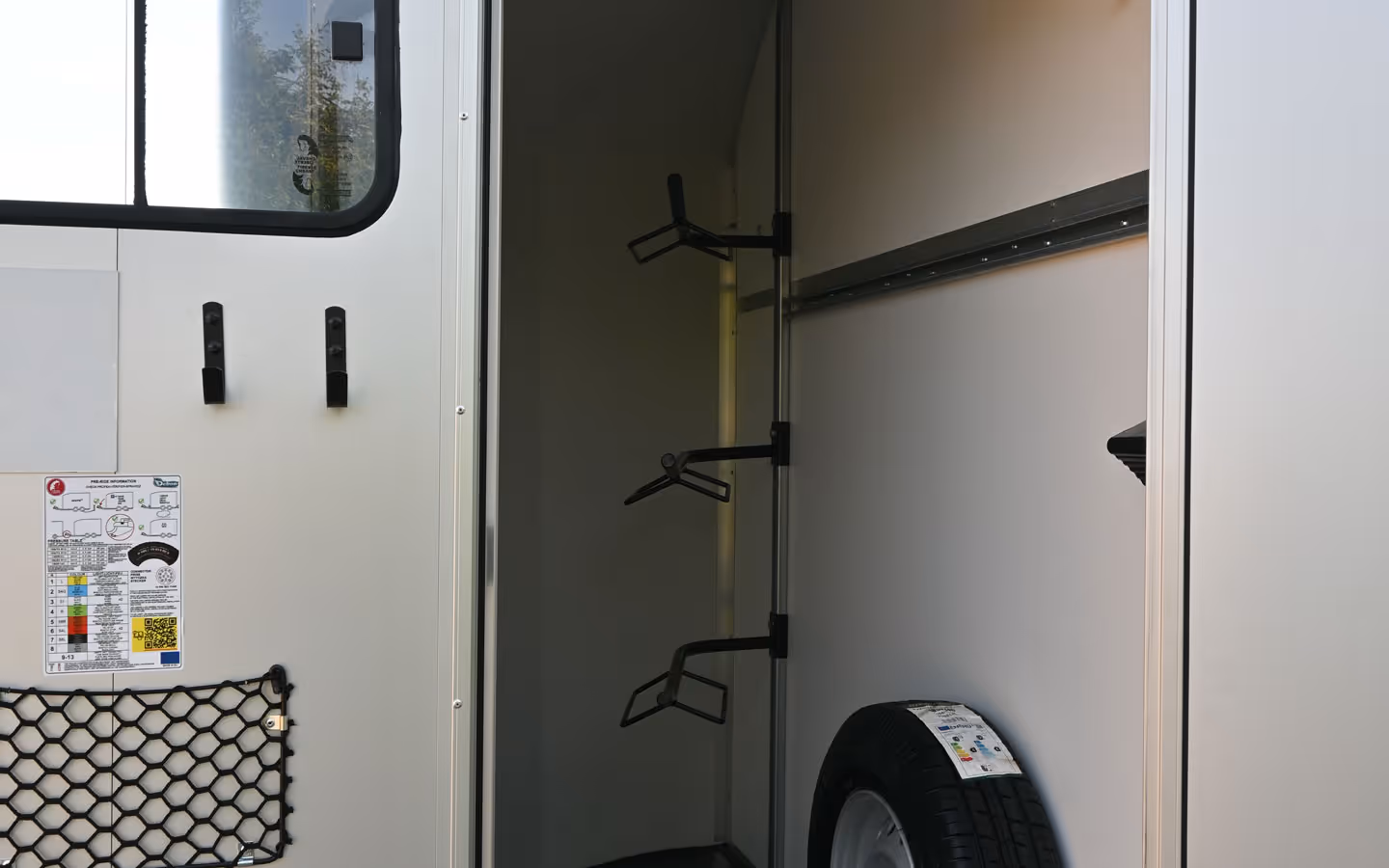

A generous tack room provides additional storage, while the Pullman 2 Suspension System delivers superb handling and a smooth towing experience for every equestrian adventure.
The Maxi3 also comes equipped with anodised aluminium plank sides and an aerodynamic polyester front and roof, combining durability with modern styling. Like all Cheval Liberté horse trailers, the Maxi3 is packed with high-quality features as standard.
Standard Specification
Protection and comfort of the horse

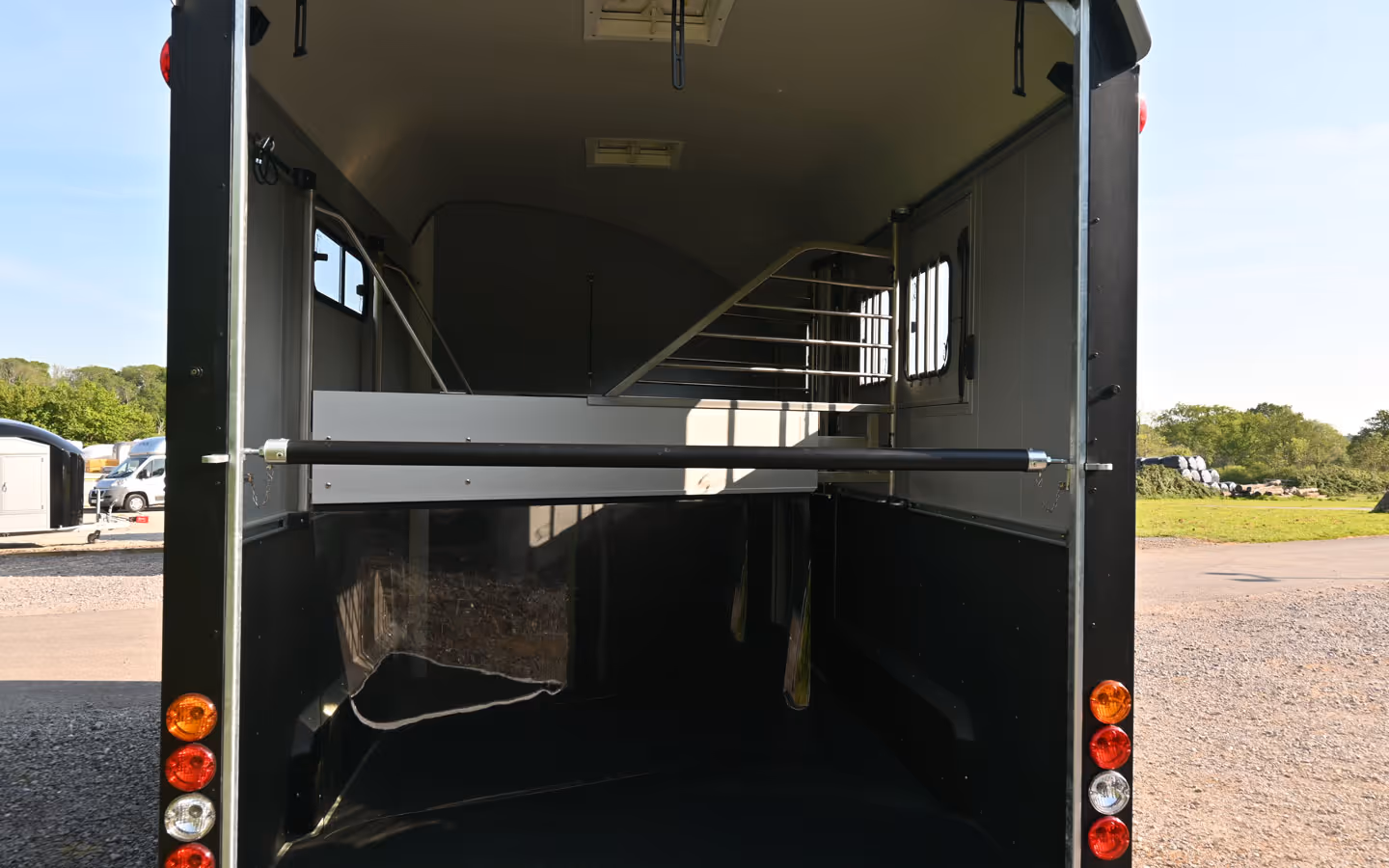

- Telescopic Adjustable Partitions with Clear PVC Skirt Flaps
- Off Side Opening Window Flap (With two sliding windows incorporated)
- Opening Window Flap (Above front ramp with sliding window incorporated)
- Sliding Window (On near side and in the tack room door)
- Pullman 2 Suspension (Superb comfort for the horses whilst travelling)
Suspension
- All of the Cheval Liberté range of horse trailers now come with the Pullman 2 Performance Suspension System installed as standard to cater for your horses’ safety and comfort and for optimal handling and towing performance
Floor
- Aluminium (For strength and longevity)
- Anti-Slip Rubber Mat (Glued to the floor)
- Easy Maintenance
Roof
- Aerodynamically Shaped Moulded Polyester One Piece (Front and roof)
- Integral Reinforcing Members
- Rear Cover with Automatic Roller (For easy, tidy operation and air flow)
- Two Roof Vents
Sides
- Anodised Aluminium Planking (For strength and longevity)
- Tie Bar
Loading Facilities

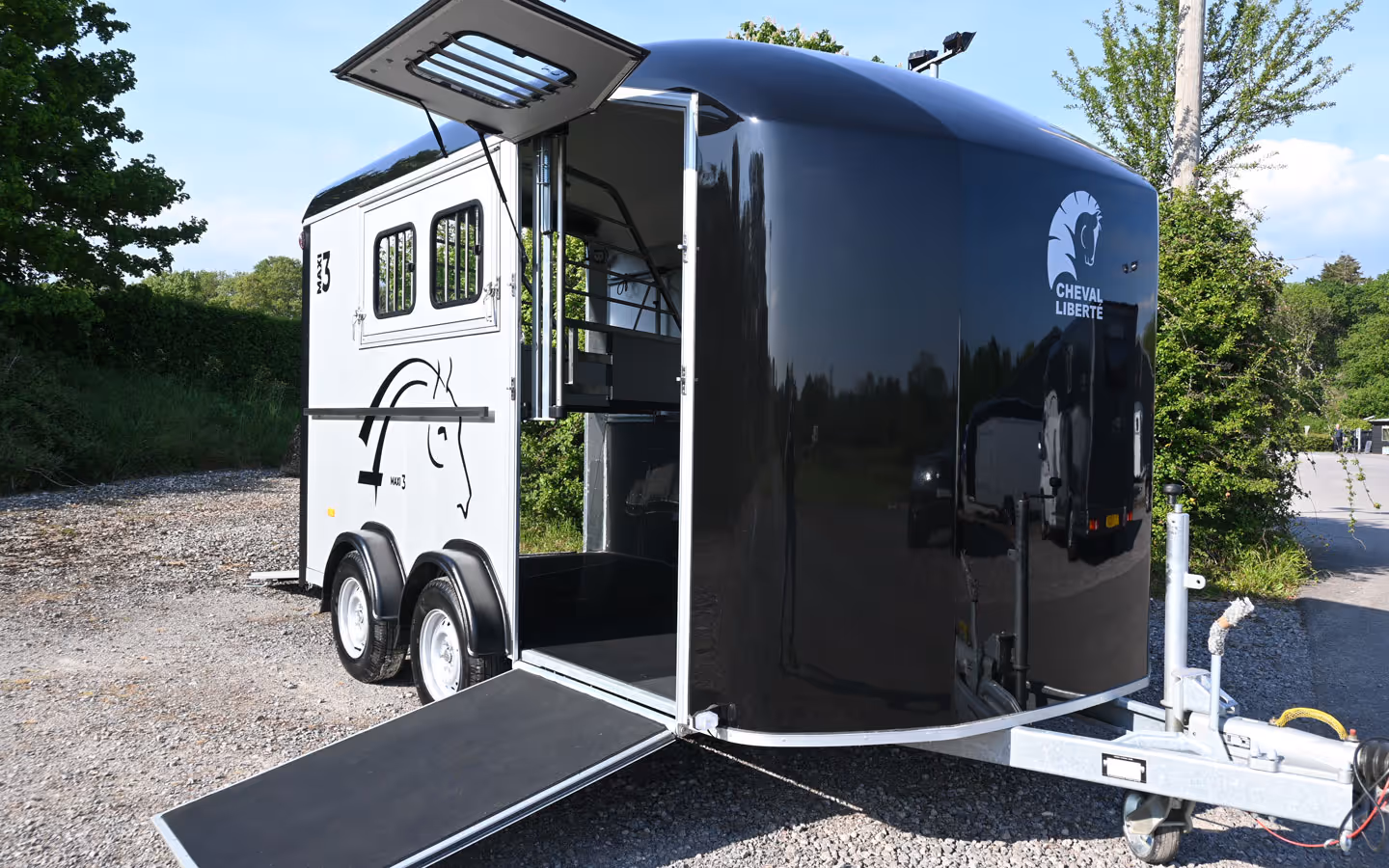

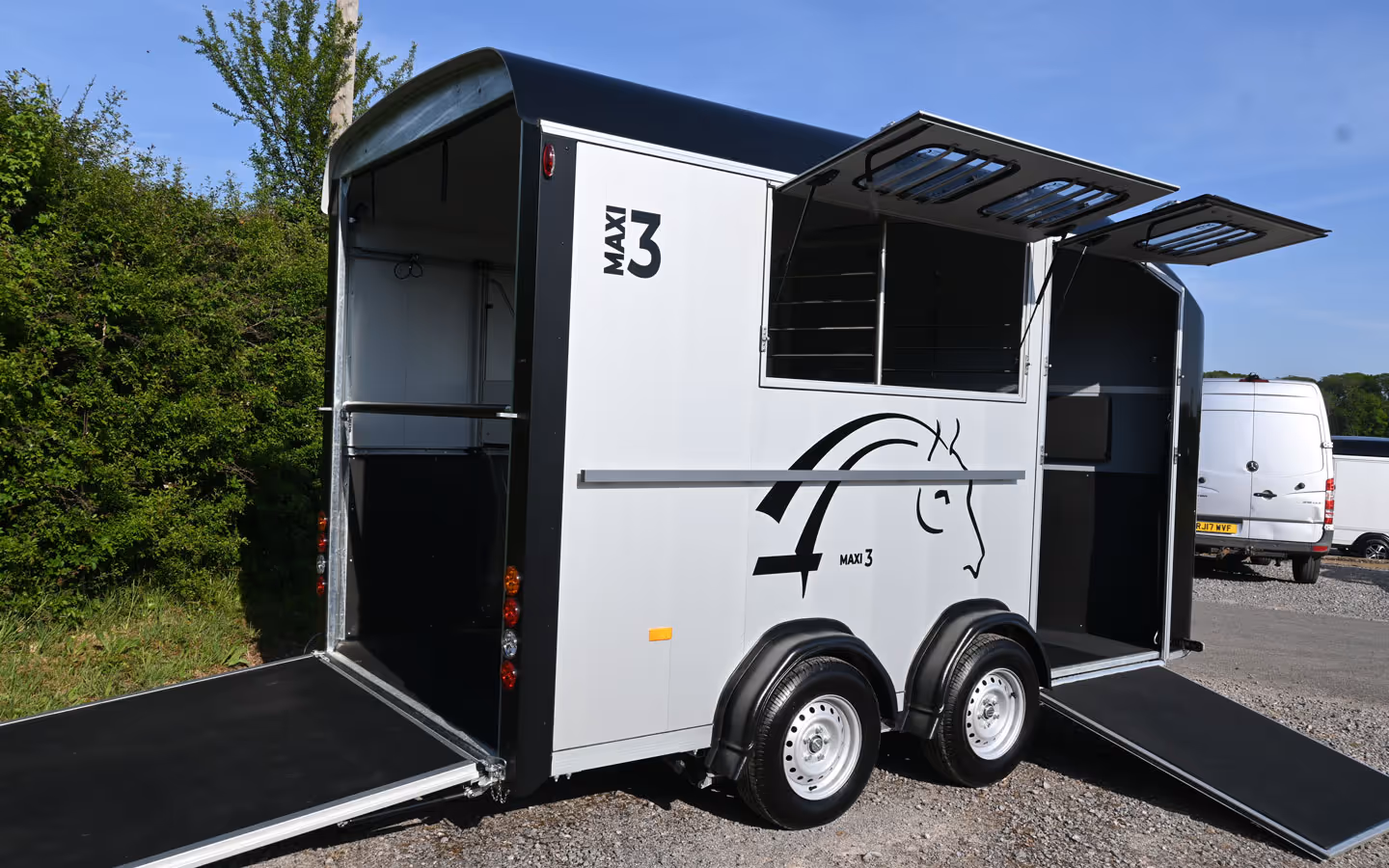

- Rear and Side Ramps (With assistors for easy operation)

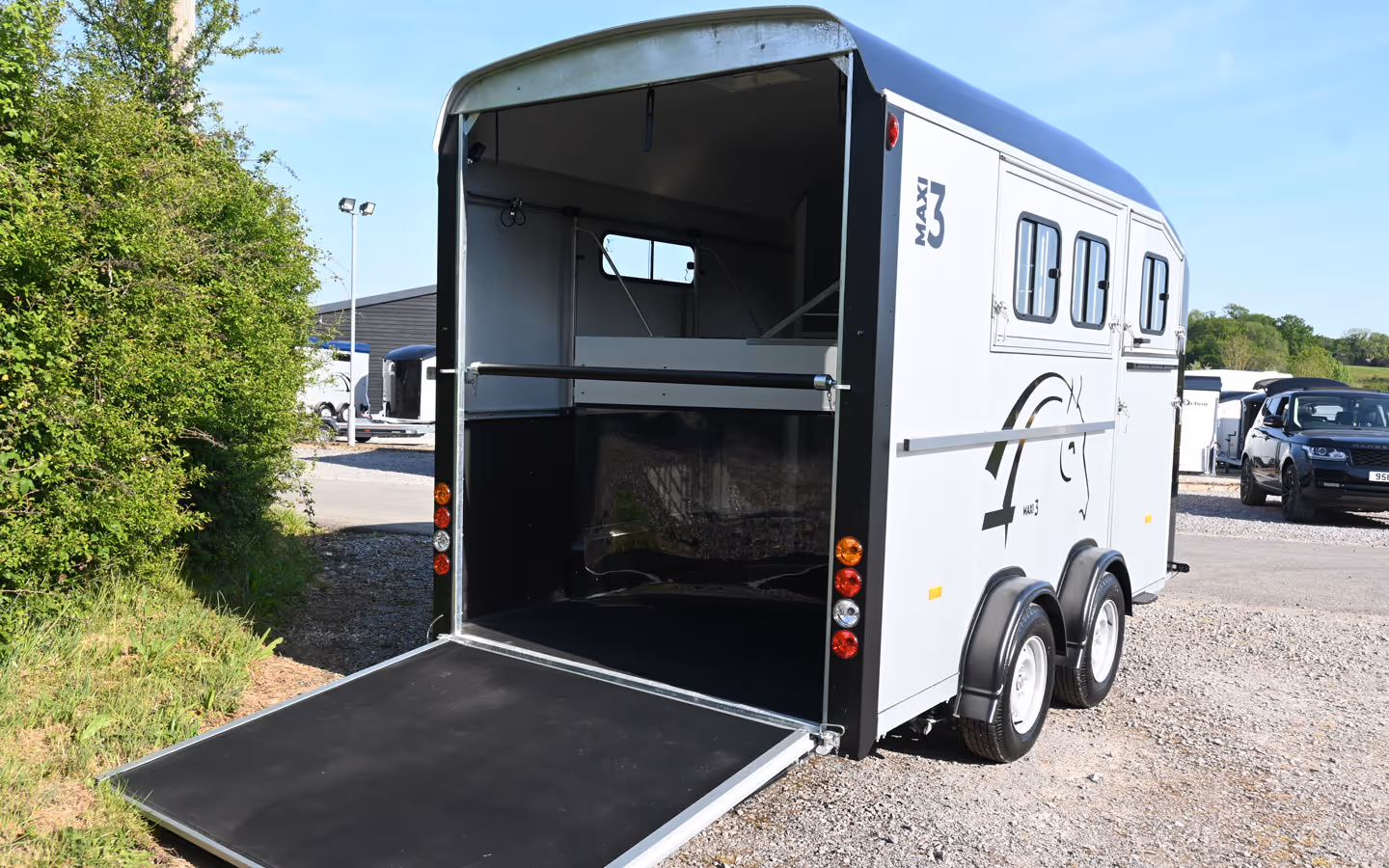

- Rear Ramp (Also opens out as a van door)
- Hinging Adjustable Partitions (For ease of loading)
Grooms Door
- Large Door (For entry into tack room)
Technical Information
- Axle - Twin
- External Dimensions - (L) 5240mm x (W) 2300mm x (H) 2630mm
- Internal Dimensions - (L) 4000mm x (W) 2070mm x (H) 2300mm
- Unladen Weight - 1395kg
- Gross Weight - 3500kg
Warranty
Two-year manufacturing warranty covering parts and labour, plus a five-year guarantee on aluminium planking and sides
