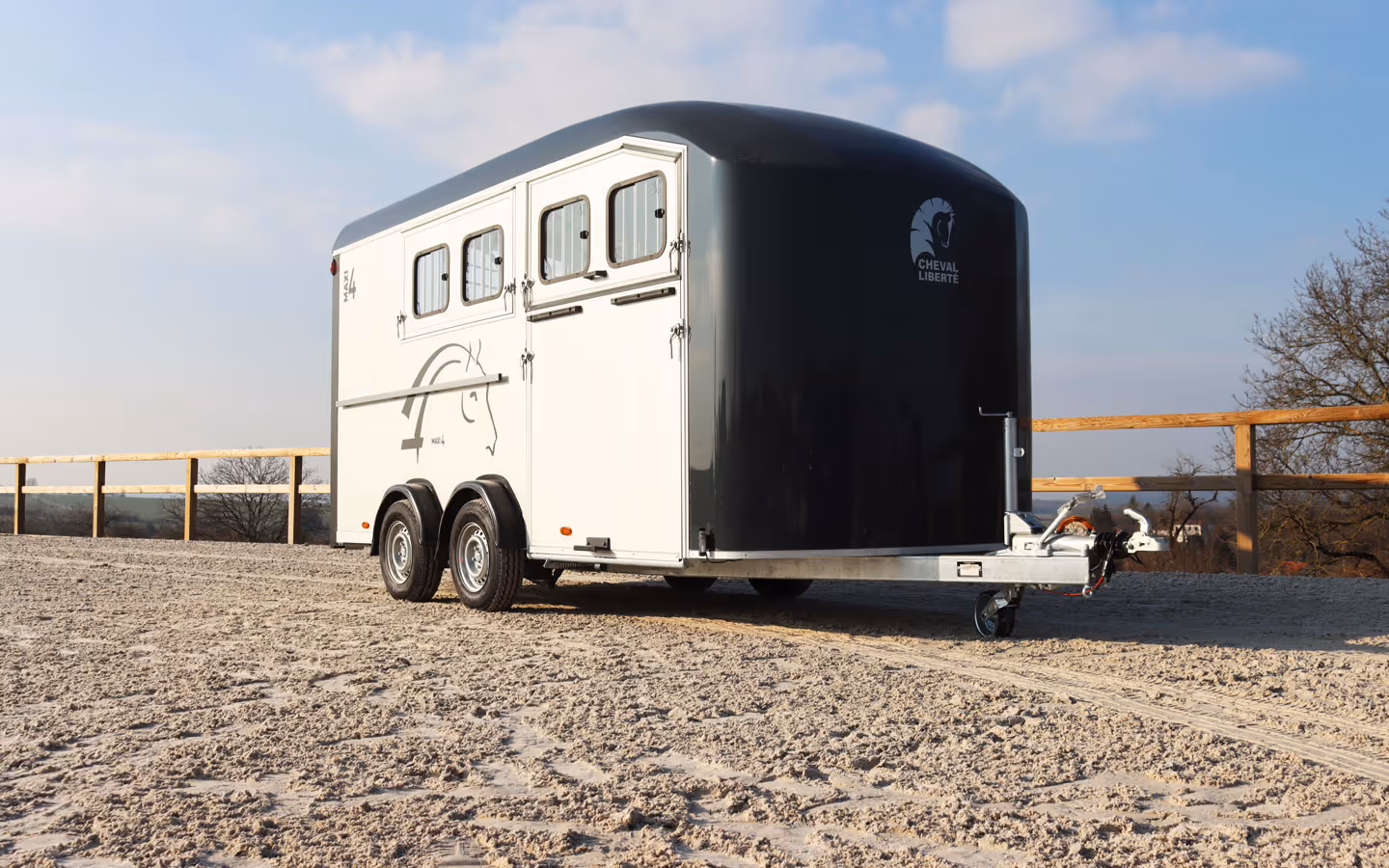

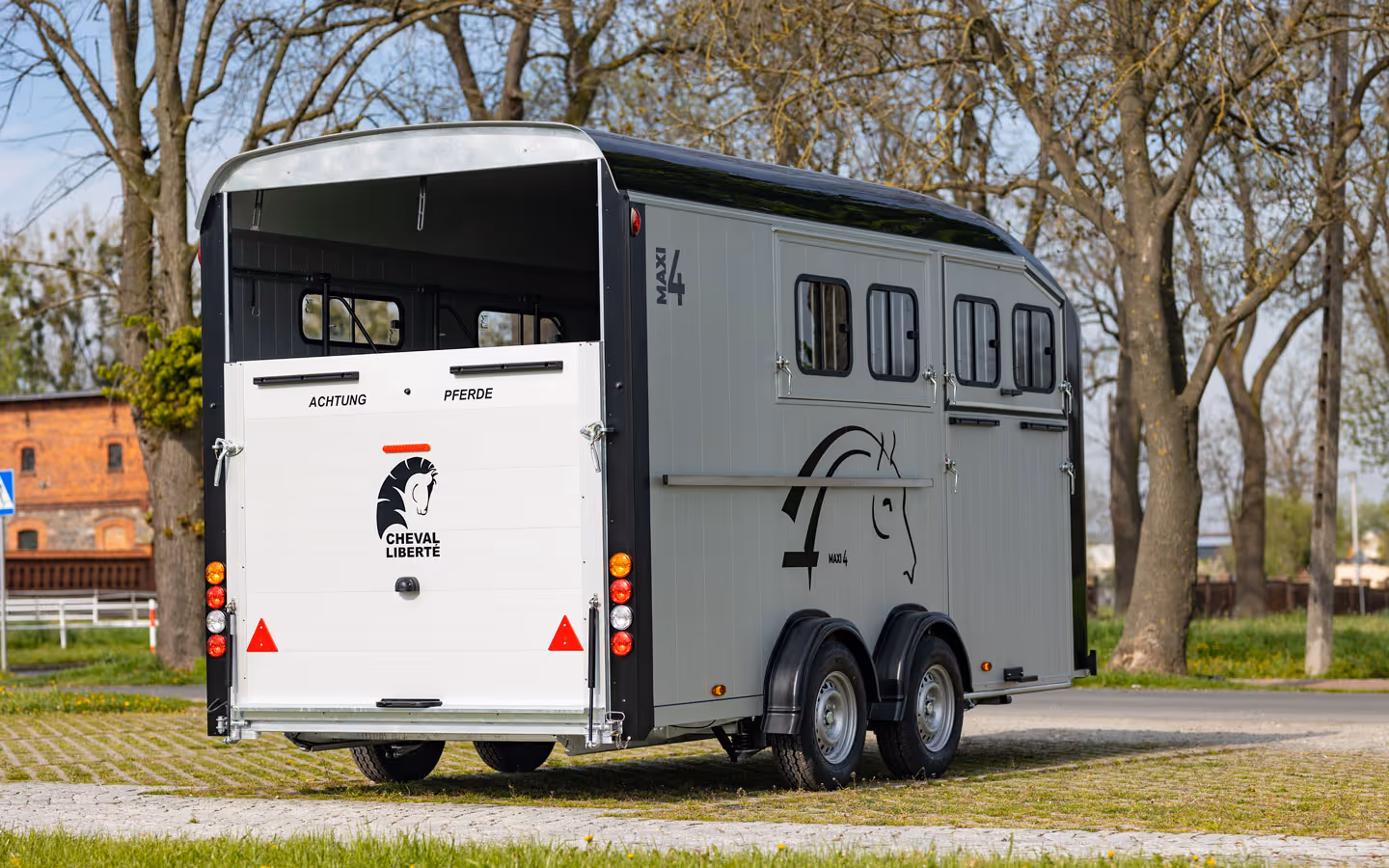

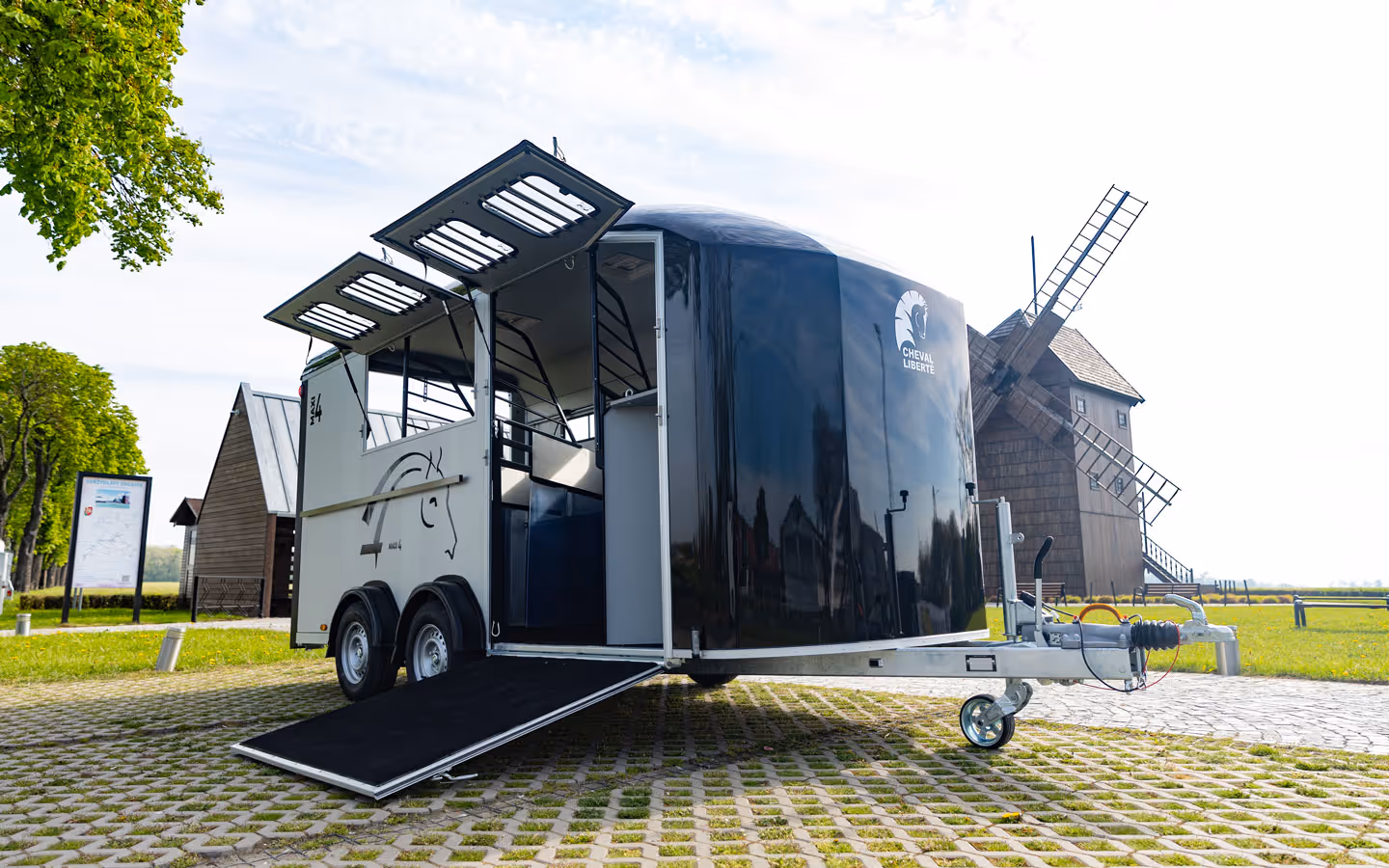

Maxi4 Four Horse Trailer
Designed as a versatile and comfortable transport solution, the Maxi 4 can accommodate up to three horses or four ponies in a secure herringbone layout that maximises interior space and flexibility.
Three telescopic adjustable partitions mounted on sliding tracks allow for easy configuration and safe separation while travelling, while the spacious built-in tack room provides ample storage for essential equipment.
Equipped as standard with the Pullman 2 Suspension System, the Maxi 4 delivers excellent towing stability and a smooth travelling experience. Anodised aluminium plank sides and an aerodynamic polyester front and roof complete the trailer’s durable, modern design. Like all Cheval Liberté trailers, the Maxi 4 comes packed with practical features focused on safety, comfort and ease of use.
Standard Specification
Protection and comfort of the horse

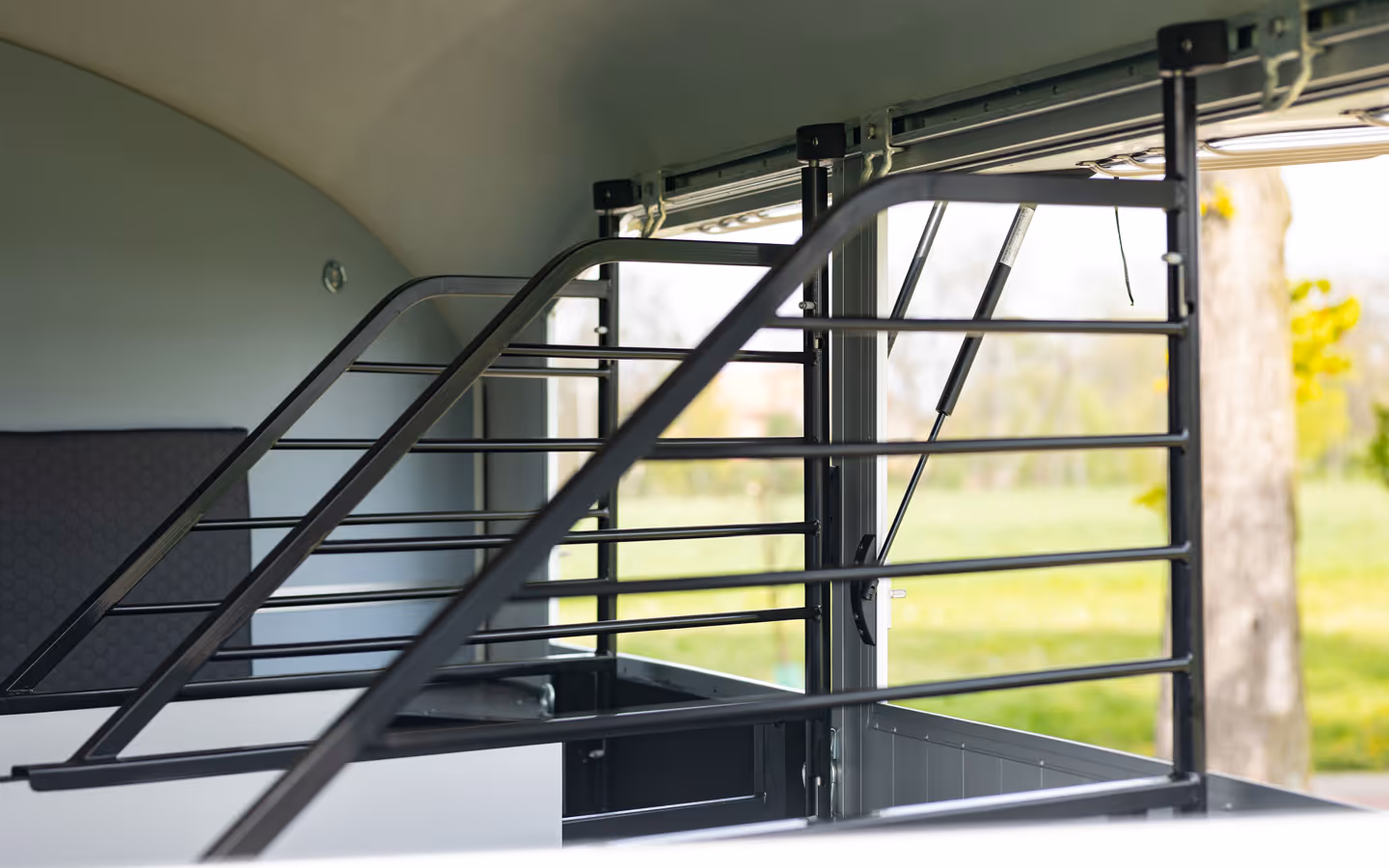

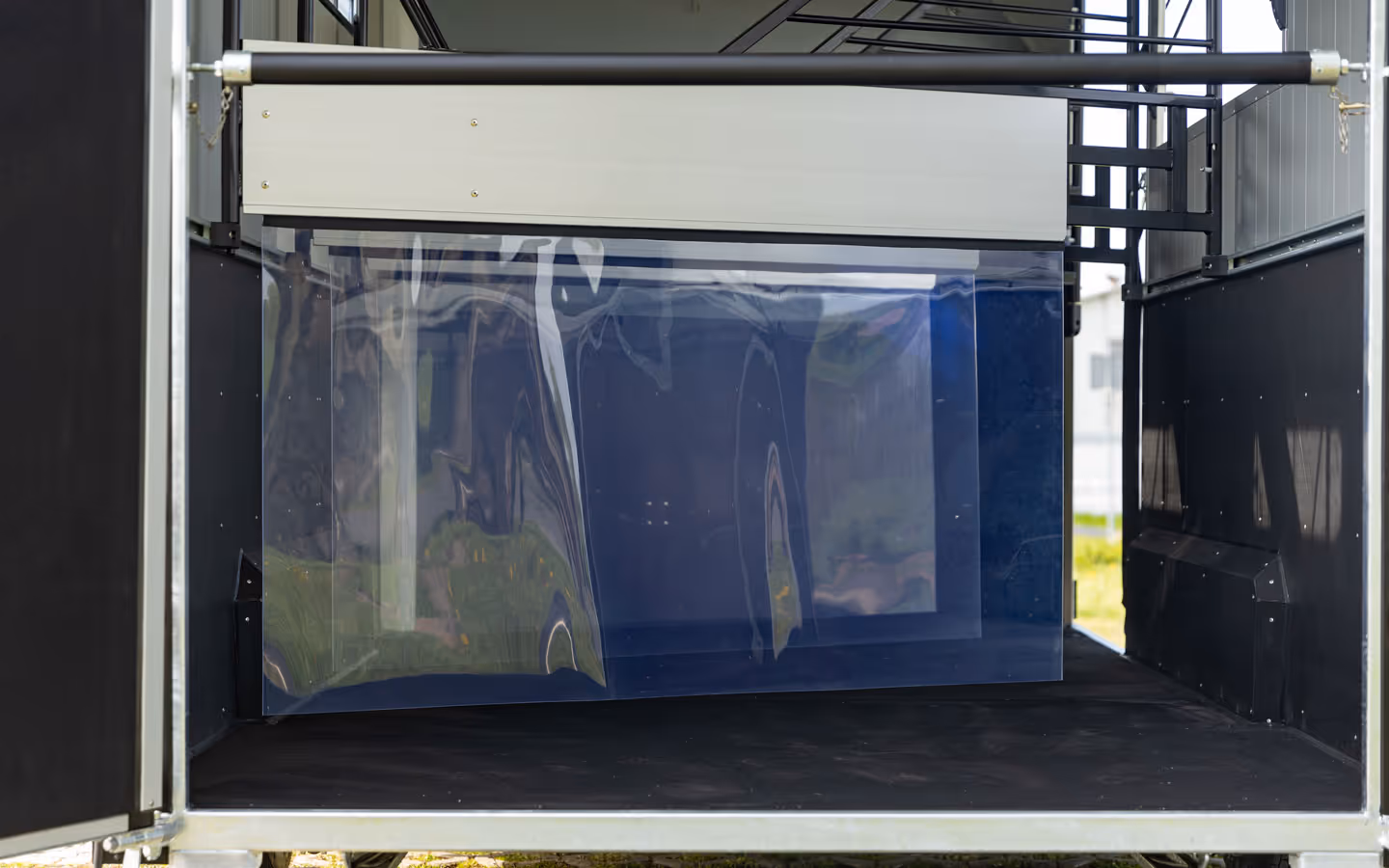

- Telescopic Adjustable Partitions with Clear PVC Skirt Flaps

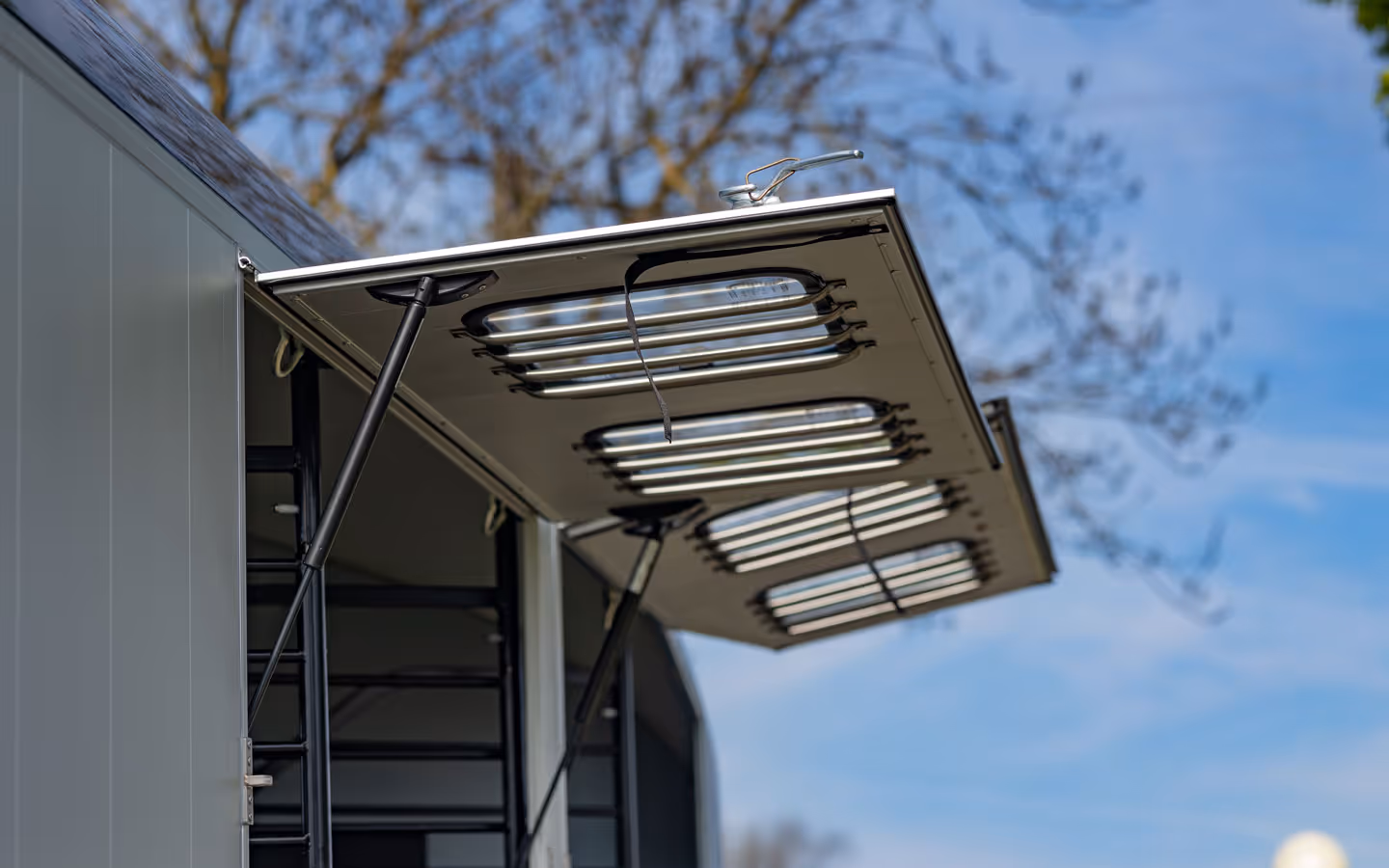

- Off-Side Opening Window Flap (With two sliding windows incorporated)
- Opening Window Flap (Above front ramp with two sliding windows incorporated)
- Sliding Window (On the near side and in the tack room door)
- Pullman 2 Suspension (Superb comfort for the horses whilst travelling)
Suspension
- All of the Cheval Liberté range of horse trailers now come with the Pullman 2 Performance Suspension System installed as standard to cater for your horses’ safety and comfort and for optimal handling and towing performance.
Floor
- Aluminium (For strength and longevity)
- Anti-Slip Rubber Mat (Glued to the floor)
- Easy Maintenance
Roof
- Aerodynamically Shaped Moulded Polyester One-Piece (Front and roof)
- Integral Reinforcing Members
- Rear Cover with Automatic Roller (For easy, tidy operation and airflow)
- Two Roof Vents
Sides
- Anodised Aluminium Planking (For strength and longevity)
- Tie Bar
Loading Facilities

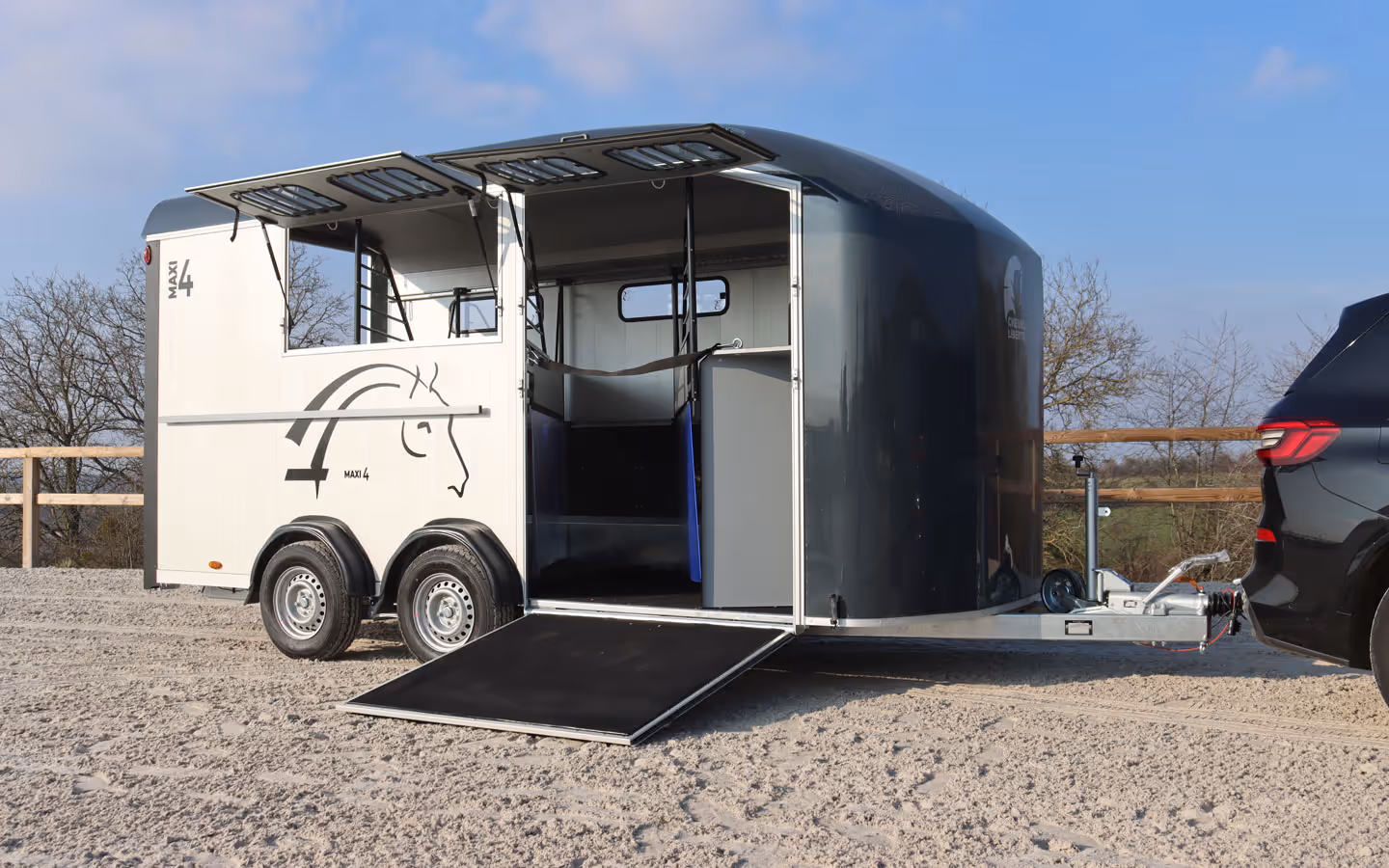

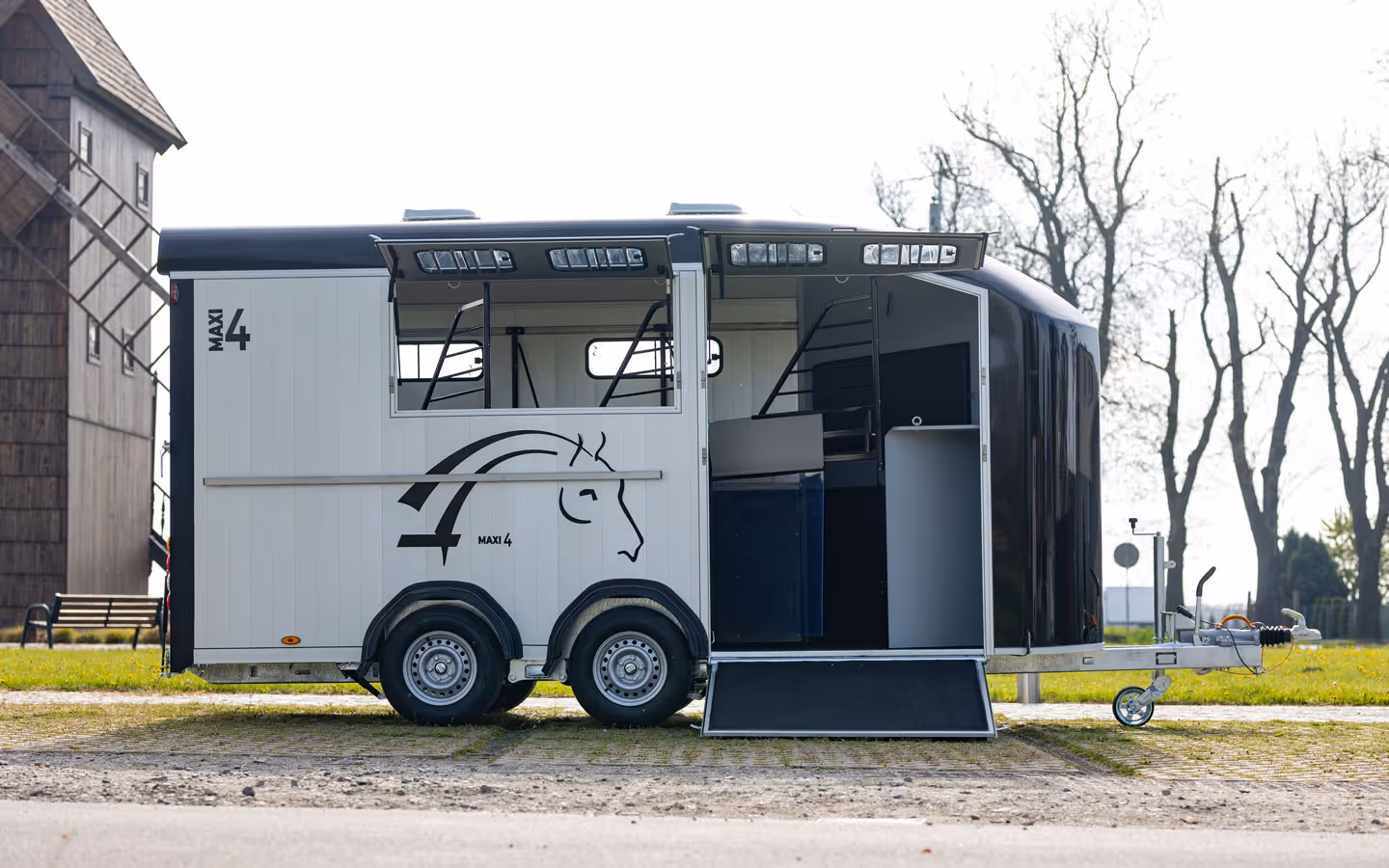

- Rear and Side Ramps (With assistors for easy operation)

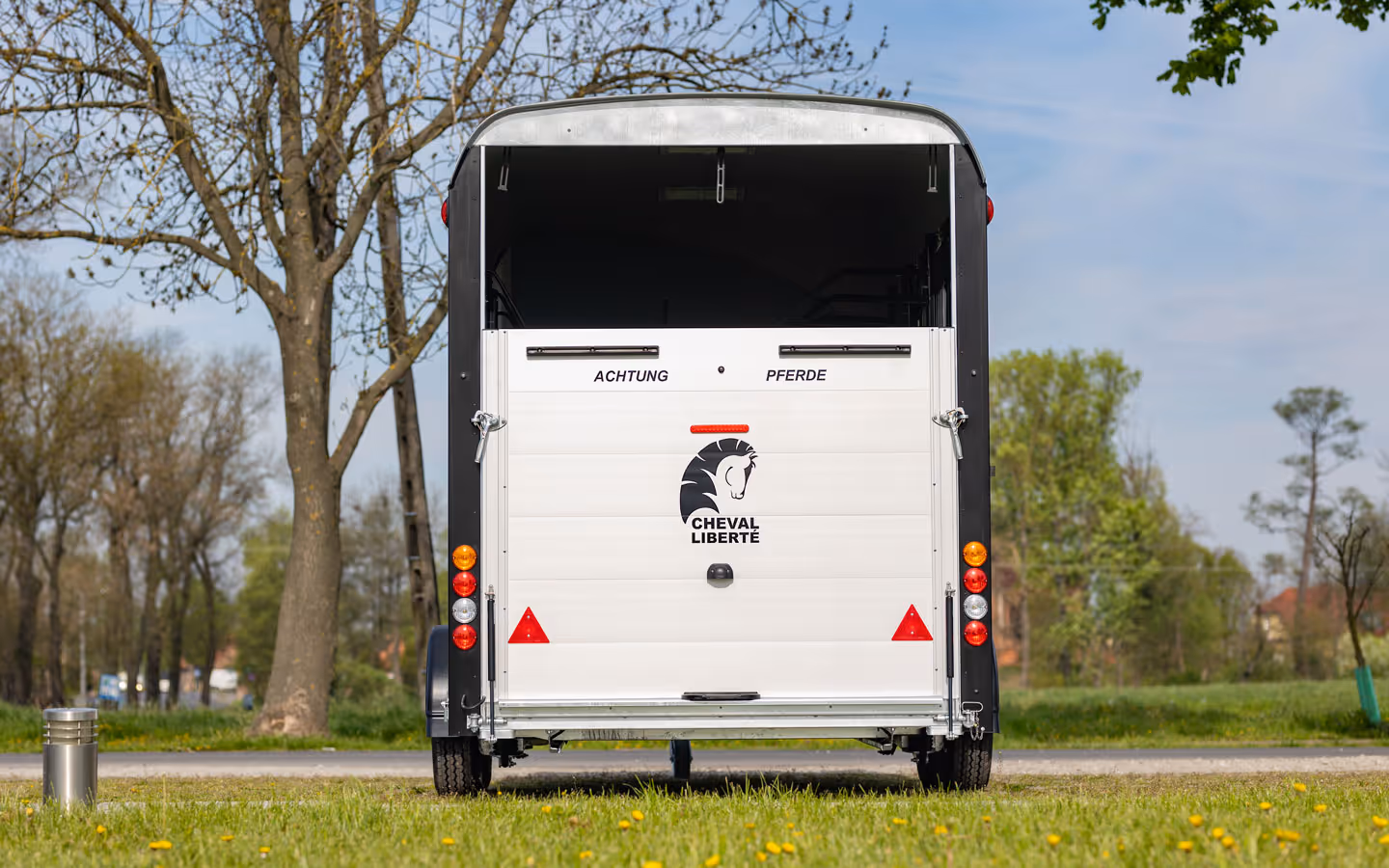

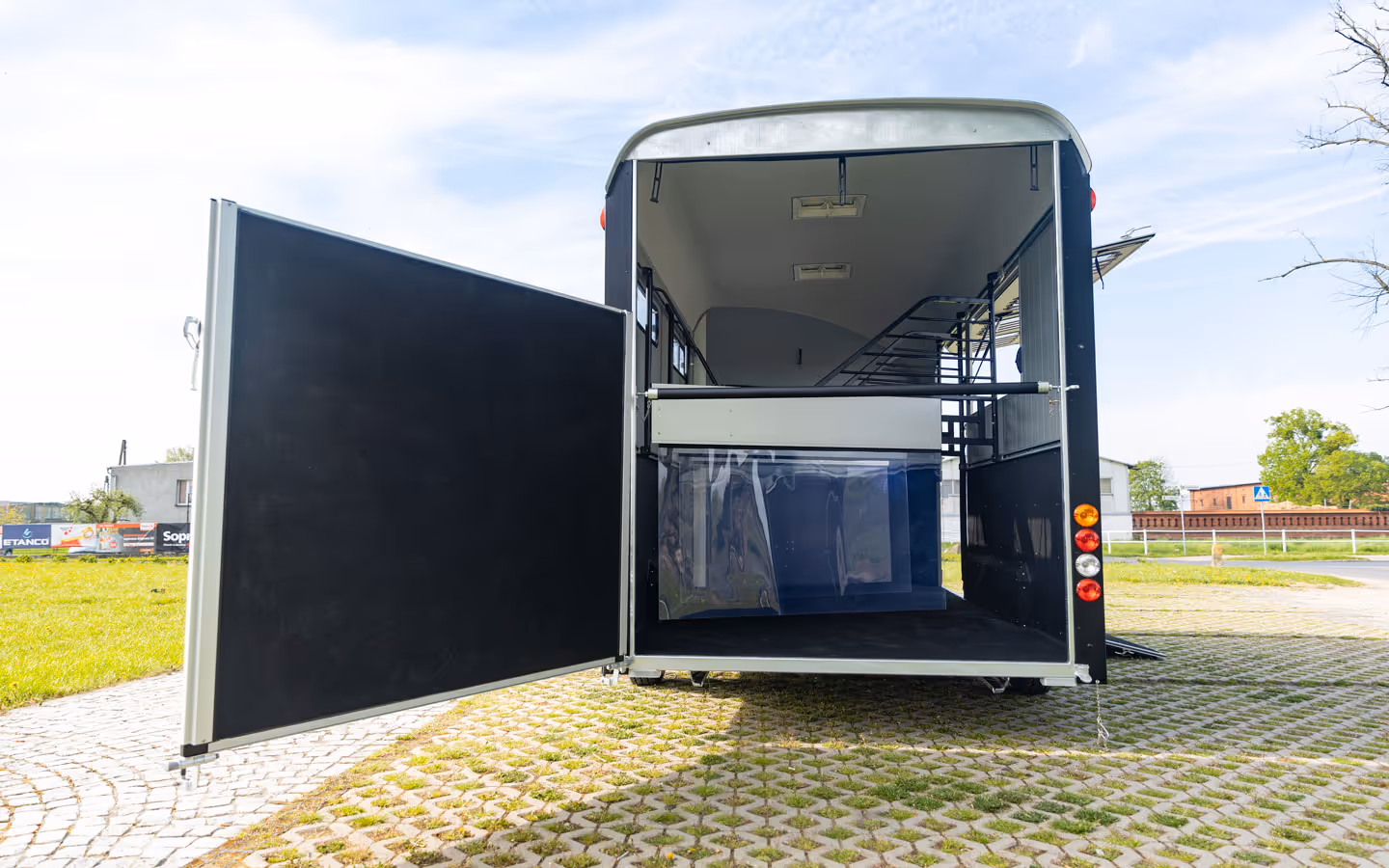

- Rear Ramp (Also opens out as a van door)
- Hinging Adjustable Partitions (For ease of loading)
Grooms Door
- Large Door (For entry into the tack room)
Colour
Optional Extras
- Rear Tailgate Opening – £350 + VAT
- Additional Tie Bar- £240 + VAT
- Top Storage Rack – £240 + VAT
- Extra Rubber Matting £395 + VAT
- Barn Doors & Windows (In lieu of rear ramp) – £700 + VAT
- Additional Partition – £570 + VAT
- Corner Partition – £625 + VAT
Trailer Covers are available for this trailer model:
- £475 + VAT
Optional extras are quoted as factory fitted items and need to be added at point of order
Technical Information
- Axle - Twin
- External Dimensions - (L) 6090mm x (W) 2300mm x (H) 2810mm
- Internal Dimensions - (L) 4900mm x (W) 2070mm x (H) 2300mm
- Unladen Weight - 1500kg
- Gross Weight - 3500kg
Warranty
Two-year manufacturing warranty covering parts and labour, plus a five-year guarantee on aluminium planking and sides
