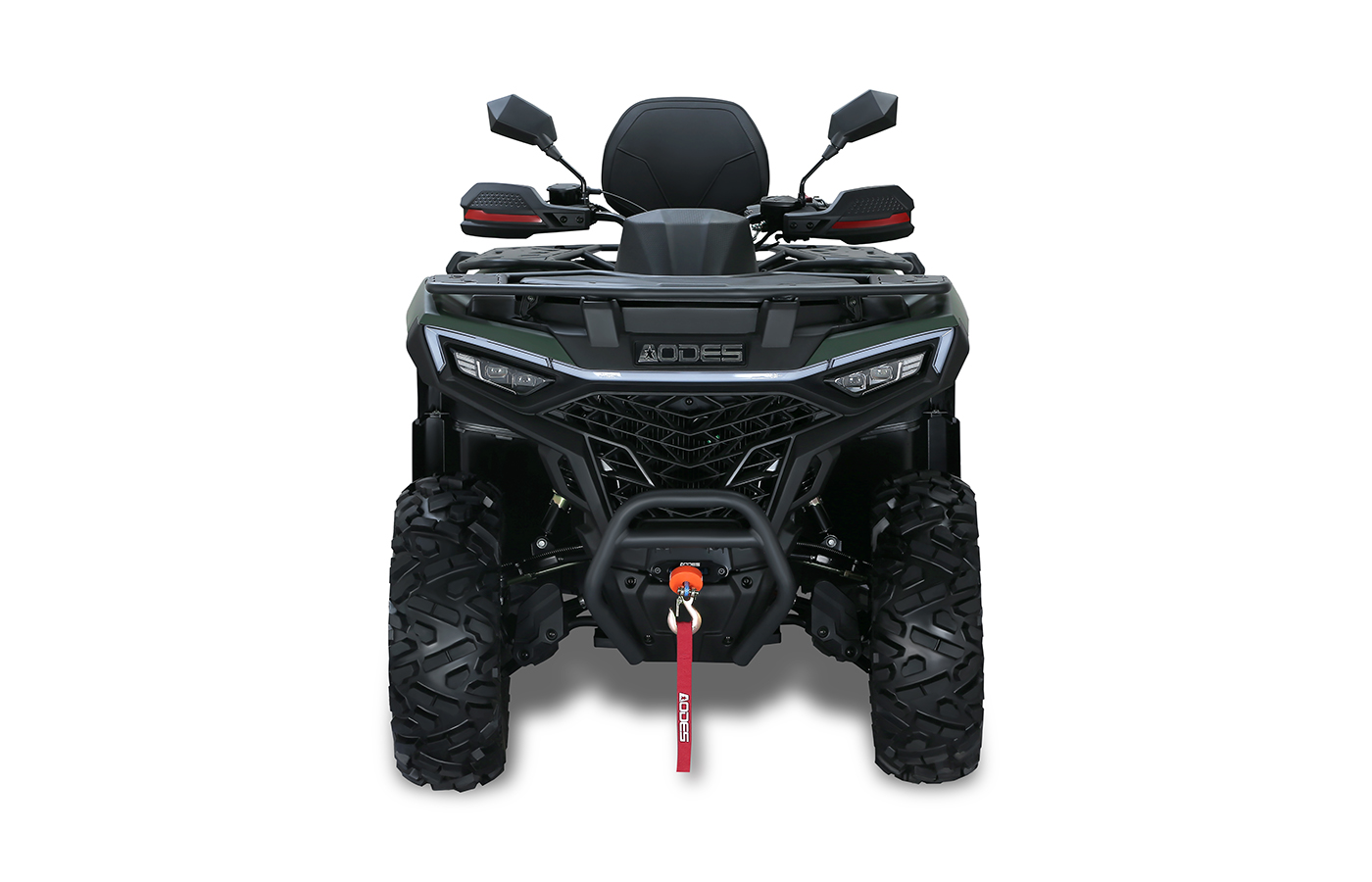

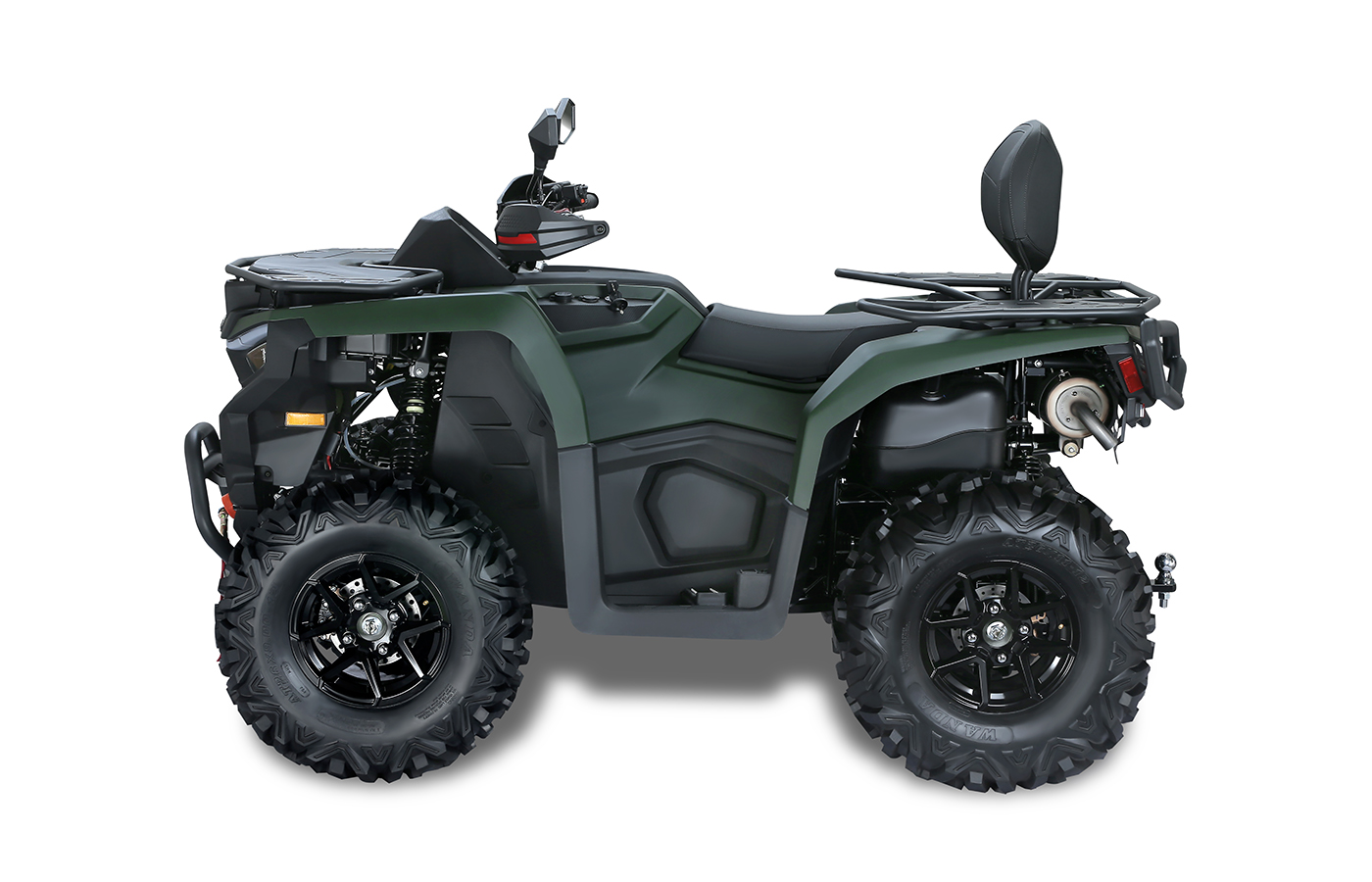

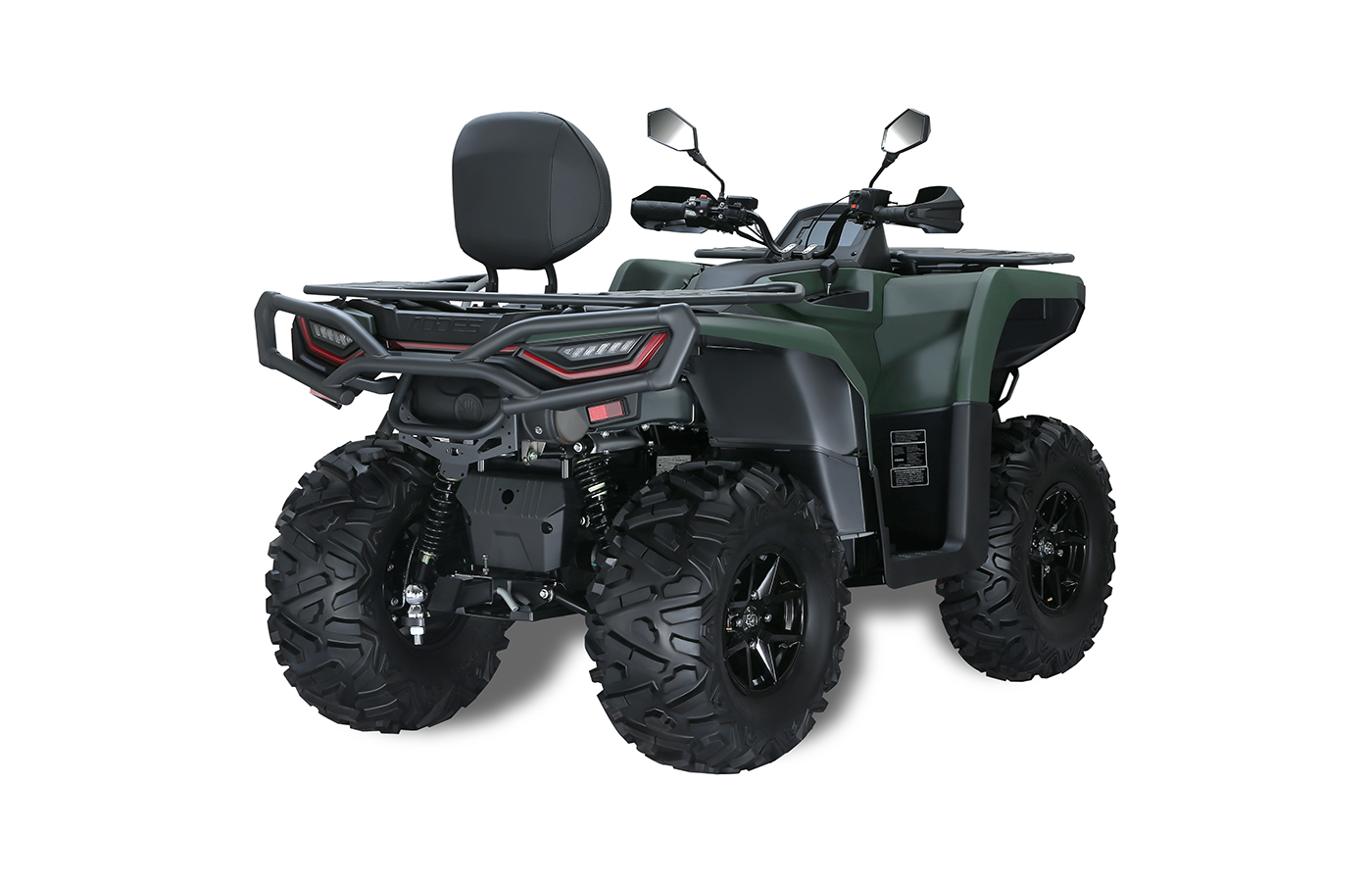

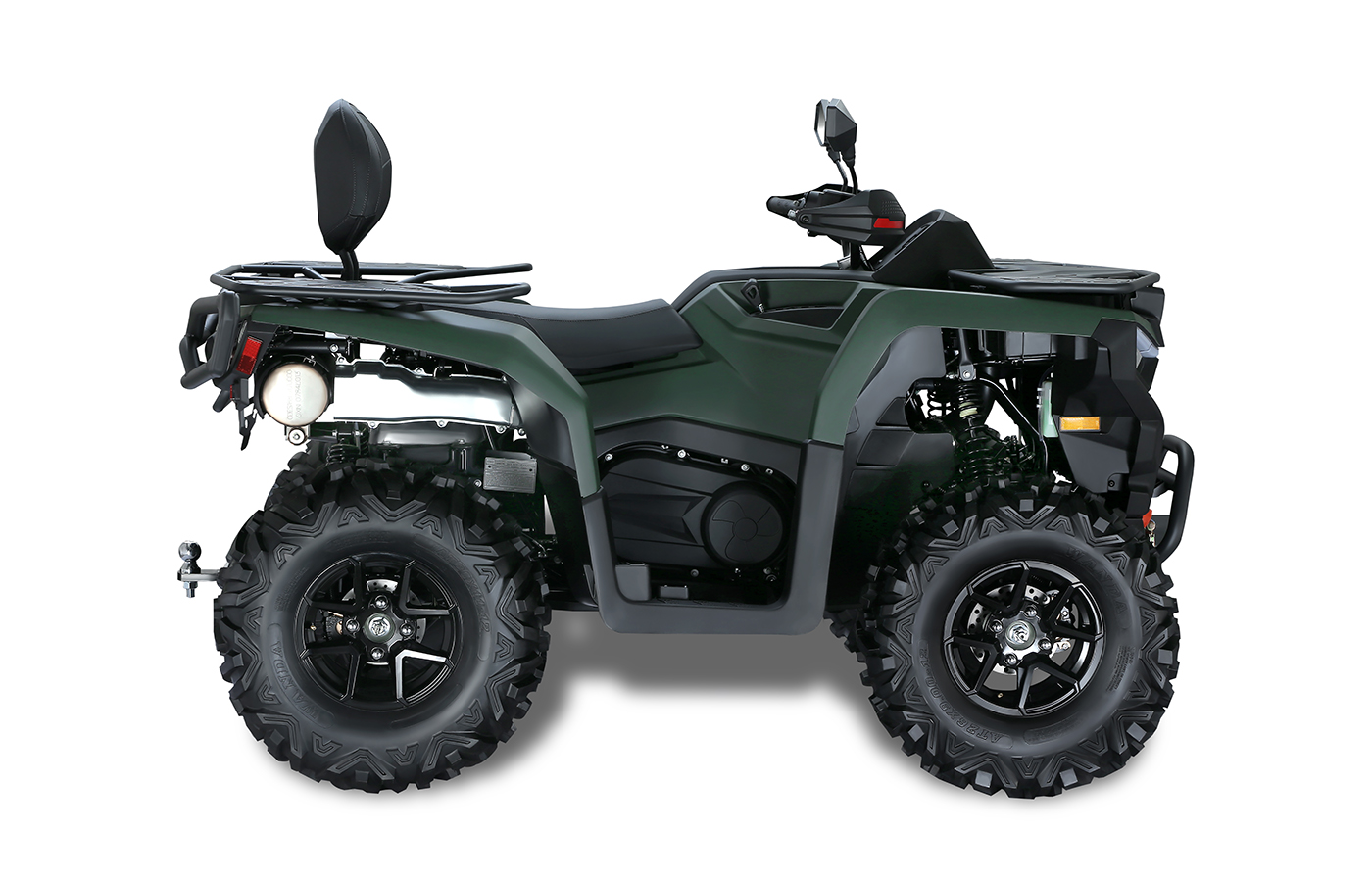

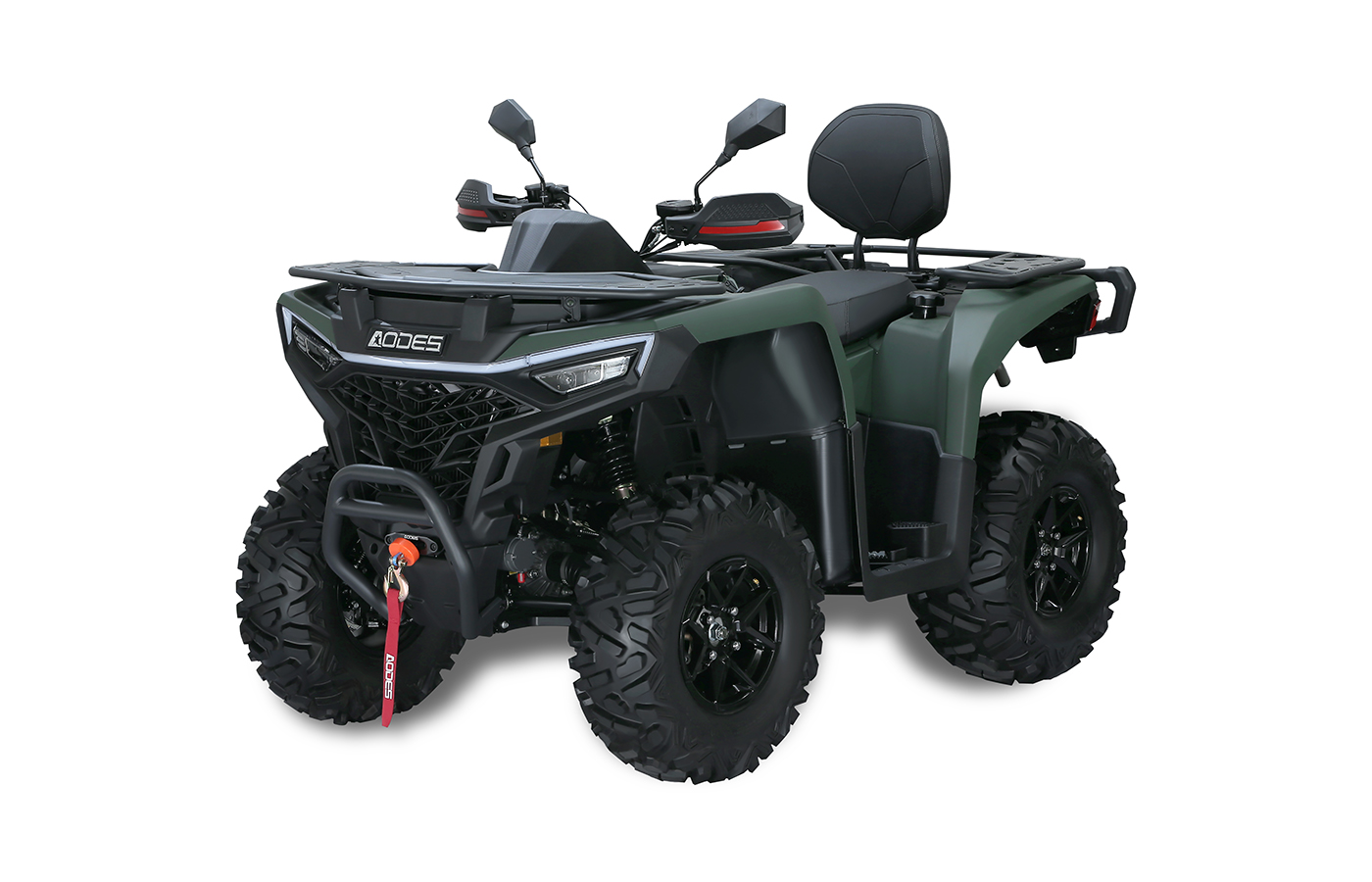

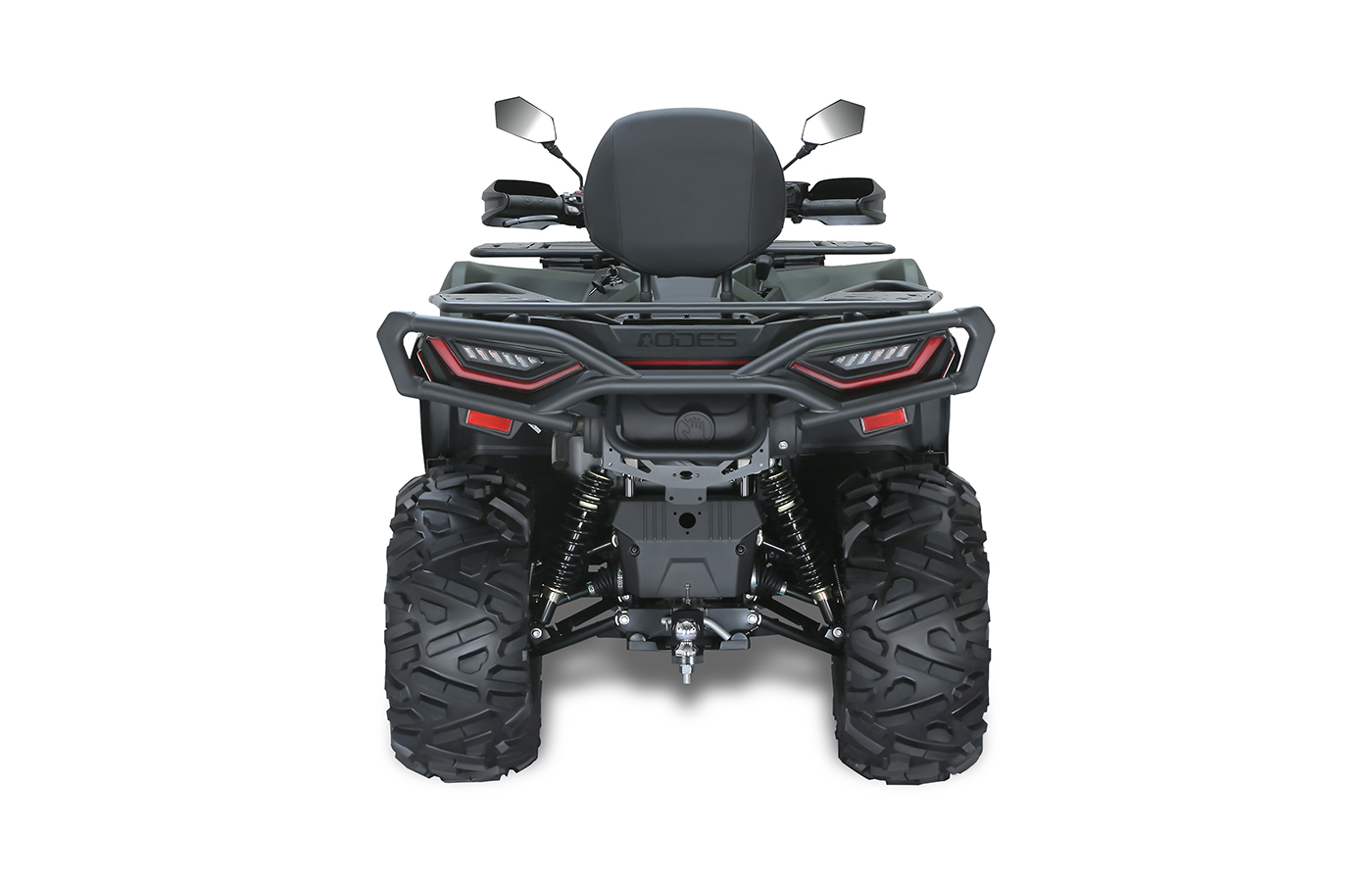

Pathcross 525-L
Built to handle demanding terrain with confidence, the Aodes Pathcross 525-L delivers a balance of power, comfort and practicality for both recreational and utility use. Powered by a responsive 495.3cc single-cylinder engine, the Pathcross 525 provides reliable performance across rough trails, muddy tracks and challenging off-road conditions. Its electronic fuel injection system improves throttle response and efficiency, while electronic power steering enhances control and reduces rider fatigue on longer journeys.
Designed with versatility in mind, the Pathcross 525 features 265mm of ground clearance and a durable suspension setup that helps maintain stability and smooth handling across uneven terrain. Front and rear cargo racks provide practical carrying capacity, while a factory-fitted winch adds extra capability for recovery work and demanding tasks. The Pathcross 525 offers riders the flexibility to choose between agile handling or increased passenger and cargo space.
Standard Specification
- 495.3cc liquid-cooledsingle-cylinder, 4-stroke engine
- Electronic Fuel Injection (EFI)
- CVT automatic transmission(L-H-N-R-P)
- High / Low range gearbox
- Reverse and park gears
- Selectable 2WD / 4WD drivetrain
- Shaft drive transmission
- Double A-Arm independent front andrear suspension
- Hydraulic disc braking system
- Front differential lock
- LED lighting package
- LCD digital instrument display
- Front and rear cargo racks 30kg front / 60kg rear capacity
- Front-mounted winch 3,500 lb / 1,588 kg
- Tow hitch receiver
- Hand guards
- Passenger backrest
- Dual-seat configuration
- Heavy-duty front bumper
- 12V charging outlet
- Electric Power Steering (EPS)
- Steel wheels 25x8-12 front / 25x10-12 rear
- L7E road-legal homologation - UK road registerable
Colour
Technical Information
- Engine Type: Single Cylinder, 4-Stroke
- Displacement: 495.3 cc
- Cylinder Bore x Stroke: 91 x 76.2 mm
- Fuel System: Electronic Fuel Injection (EFI)
- Cooling System: Liquid cooled
- Max Power: 32 kW / 7,000 rpm
- Max Torque: 46 N·m / 5,800 rpm
- Transmission: CVT (L-H-N-R-P)
- Starter: Electric
- Suspension (front / rear): Double A-Arm Independent
- Suspension Travel (front / rear): 180 mm / 220 mm
- Shocks: Preloaded, Oil Damped
- Front Tyres: 25 x 8-12
- Rear Tyres: 25 x 10-12
- External Dimensions (L x W x H): 2,215 x 1,172 x 1,260 mm
- Wheelbase: 1,460 mm
- Ground Clearance: 265 mm
- Fueltank Capacity: 23 L
- Dry Weight: 375 kg
- Curb Weight: 400 kg
- Max Carrying Capacity: 250 kg
- Gross Vehicle Weight (GVW): 650 kg
- Towing Capacity: 600 kg
- Winch Rating: 3,500 lb (1,588 kg)
- Rack Capacity (front / rear): 30 kg / 60 kg
- Top Speed: 95 km/h
- Turning Radius: 3 m
- Homologation: L7E (Heavy Quadricycle) - Road Legal
Warranty
Two year manufacturer-backed warranty covering defects in materials and workmanship
